The new SRAM Rival 22 is a all-new road group purpose-built in Ice Grey and Black anodized finish to complement any bike frame.

RST Cycle Clothing & Trigon Bikes

Product News – SRAM 11-speed Rival 22

NOTE: Send your results as well as club, team & event news here

PRODUCT PRESS RELEASE

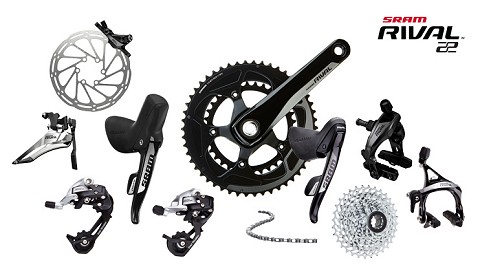

2014_RIVAL22_SRAM-GROUPSET
The new SRAM Rival 22 is a all-new road group purpose-built in Ice Grey and Black anodized finish to complement any bike frame. The Brakes accept 28c tires for when the pavement ends and SRAM has 3 options for the brakes, mechanical brakes, HydroR Hydraulic Rim Brakes or Hydraulic Disc Brakes. It also features 22 gears with Yawâ„¢ front shifting for no trim, rub or rasp.

Gearing choices available include 11-32 cassette, compact chainring and rank-arm length options. Shift and brake lever set features same ErgoFit ergonomic design as SRAM REDâ„¢ 22.

2014_RIVAL22_SRAM-1_SHIFTERSRival 22 DoubleTap® Mechanical Shifters
– Modeled after best-in-class SRAM RED 22 shifters
– ErgoFitâ„¢ uses the same ergonomic design and textured cover as SRAM RED 22 for improved grip and finger wrap
– Individual Reach Adjust of brake lever and shift paddle
– Zero Lossâ„¢ Front & Rear
– Forged aluminum brake lever and shifter paddle
– Lightweight at 332g a pair
– MSRP: $251/ €223/ £191 (set)

2014_RIVAL22_SRAM-2_FRONTDERRival 22 Front Derailleur
– Yawâ„¢ cage rotates in line with chain, improving the shifting speed and precision while eliminating the need for shifter trim
– Integrated chain spotter protects your frame, installs and adjusts independently of the derailleur itself
– Optional Braze-on Adapters with chain spotter
– Precision alignment markings on the cage
– Weight: 88g
– MSRP: $38/ €34/ £29

Rival 22 Yawâ„¢ Crankset

2014_RIVAL22_SRAM-3_CHAINSET

– 165, 167.5, 170, 172.5 and 175mm length options

– X Glide Râ„¢ chainrings
– Aluminum arms and machined alloy ring and spiders
– GXP, PressFit, BB30, PressFit 30 bottom brackets
– 110 BCD, 52/36 – 50/34 – 46/36
– Weight: 860g (BB30 50/34 w/o BB)
– 844g (GXP 50/34 w/o BB)
– MSRP: BB30: $218/ €194/ £166 – GXP: $192/ €171/ £146

2014_RIVAL22_SRAM-4_rear_derRival 22 Rear Derailleur – Mid cage (WiFLi)

– Mid-cage derailleur works with cassettes up to 32 teeth
– WiFLiâ„¢ delivers a wider range of gears than your standard triple, faster shifts through two chainrings and every gear on the rear cassette, and with significant weight savings.
– Weight: 191g
– MSRP: $72/ €64/ £55

Rival 22 Rear Derailleur – Short cage

2014_RIVAL22_SRAM-5_rear_der2
– Exact Actuationâ„¢ shifting provides fast, accurate shifts.
– AeroGlide â„¢ pulleys optimized for silent shifting
– Aluminum outer and inner cages
– Configured to maximize shifting performance for 22 usable gears
– Weight: 180g
– MSRP: $59/ €52/ £45

Rival 22 Mechanical Brakeset

2014_RIVAL22_SRAM-6_rear_brake

– Dual pivot design increases braking power and enhances progressive feel
– Optimized for Zipp Firecrest® compatibility with clearance for tires up to 28c
– Forged aluminum arms with SwissStop® pad compound
– Weight: 300g a pair
– MSRP: $86/ €76/ £65 (set)

PG 1130 Cassette
2014_RIVAL22_SRAM-7_cassette

– Three options: 11-26 (260g), 11-28 (271g) or 11-32 (310g)
– Heat-treated steel cogs with aluminum spider
– Compatible with PC 1170 and PC 1130 chains
– MSRP: $69-76/ €61-68/ £52-58

PC 1130 chain

2014_RIVAL22_SRAM-8_chain
– Strong, precise and lightweight
– PowerLockâ„¢ connecting link
– Weight: 259g
– MSRP: $29/ €26/ £22

2014_RIVAL22_SRAM-9_HydroshiftersSRAM Rival 22 DoubleTap® Hydraulic Shifters
– All new design inside and out
– Revised ergonomics for better finger wrap and a revised shifter paddle for improved finger clearance
– Individual Reach Adjustâ„¢
– Forged Aluminum brake & shift levers
– Low hand force required
– Fully sealed system for no contamination
– Easy bleed access
– Weight & MSRP: Included in the Hydraulic Rim and Disc Brakesets

Rival 22 Hydraulic Rim Brakeset

2014_RIVAL22_SRAM-10_HydroBrake

– Tool-free contact point adjust
– Tire clearance of 28mm and Zipp Firecrest® rim compatibility (27.4mm)
– Forged aluminum arms with SwissStop® pad compound
– Weight: 422g per wheel (Lever, Caliper, Hose 600mm)
– MSRP: $334/ €297/ £254 per wheel (Shift-Brake hydraulic lever, hose and caliper)

2014_RIVAL22_SRAM-11_HydroBrakeDiscRival 22 Hydraulic Disc Brakeset

– Optimized stopping power and modulation for road or cyclocross
– 18mm front/18mm rear pistons
– Road specific caliper and piston ratio
– Fully sealed system = no contamination
– Centerline rotors sold separately
– 160mm for pavement or 140mm option for off-road
– Forged aluminum disc caliper with stainless steel backed pads
– Weight: 493g per wheel (Lever, Caliper, Hose and 160mm Centerline rotor)
– MSRP: $384/ €341/ £292 per wheel (Shift-Brake hydraulic lever, hose and caliper)

Centerline rotor
2014_RIVAL22_SRAM-12_BrakeDisc

– Quiet in the dry with no “gobble”
– Better heat management with no cupping or warping at extreme temperatures
– Weight: 88g (140mm)/ 112g (160mm)
– MSRP: $44/ €39/ £33 (140mm)/ $55/ €49/ £42 (160mm)
